UnikGlass+ for dropped ceiling

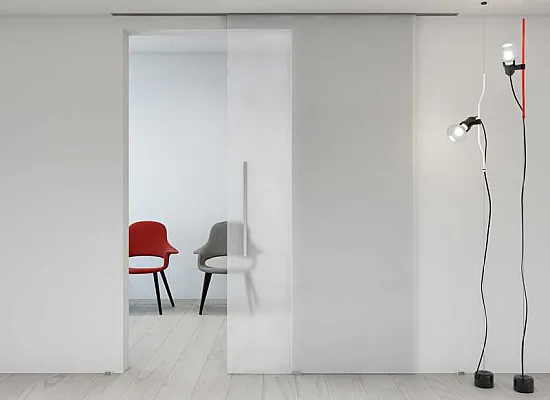

UnikGlass+TOP from KLEIN-Europe® is a stylish track system where the suspension of the glass door is incorporated into the track. The track is mounted in a special profile for a suspended ceiling, creating a maximum effect without architectural barriers.

The sliding glass door is held in place by a U-shaped profile, so the sliding door system has no rail on the floor.

The UnikGlass+TOP is available for different glass thicknesses

• 8-10 mm thick, maximum weight 50 Kg (UnikGlass+50)
• 10-12 mm thick, maximum weight 100 Kg (UnikGlass+100)
• 12 mm thick, maximum weight 150 Kg (UnikGlass+150)

Door operation options:

• KBS - KLEIN's own brake system - stop with damper brake.
• KSC - KLEIN's own Soft Closing - smooth, controlled closing.

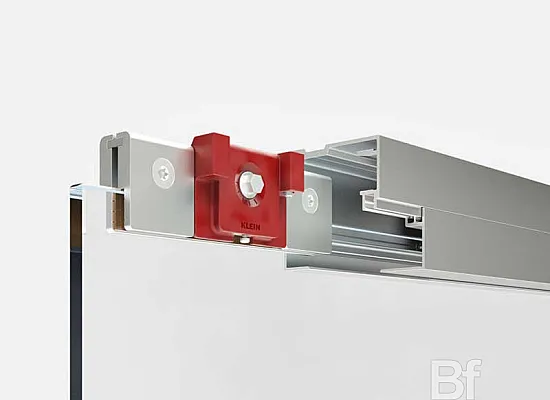

Depending on the rail length, 1 or 2 glass clamp sets are included:

• Rail 2000 mm - false ceiling profile 2000 mm - 1x glass clamp set
• Rail 3000 mm - false ceiling profile 3000 mm - 1x glass clamp set
• Rail 4000 mm - profile lowered ceiling 4000 mm - 2x glass clamping set
• Track 6000 mm - false ceiling profile 6000 mm - 2x glass clamp sets

Sliding door rail UnikGlass+TOP is also available for wall mounting and for mounting directly to the ceiling.
