Invisible hinge Eclipse 3.2 HD

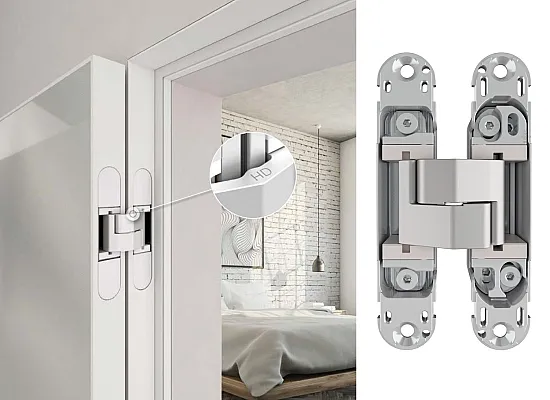

Eclipse 3.2 HD is a hidden hinge from AGB® for a flat door with or without rebate. Particularly suitable for doors in a hidden frame, so where the door flushes with the wall on one side. The hidden hinges open 180° and are adjustable in 3 dimensions, without having to remove the door from the frame for adjustment.

This invisible hinge is not only suitable for wooden interior doors, but (thanks to the 4 mm mounting thickness) also suitable for aluminum doors and fire resistant doors.

The Eclipse 3.2 HD has a load capacity of 60 kg with 2 hidden hinges or 80 kg with 3 or 4 hinges.

Advice:

2 hinges for a door weight under 60 kg and up to a door height of 1600 mm
3 hinges for a door height up to 2100 mm and a maximum width of 930 mm
4 hinges per door for a door height from 2100 mm

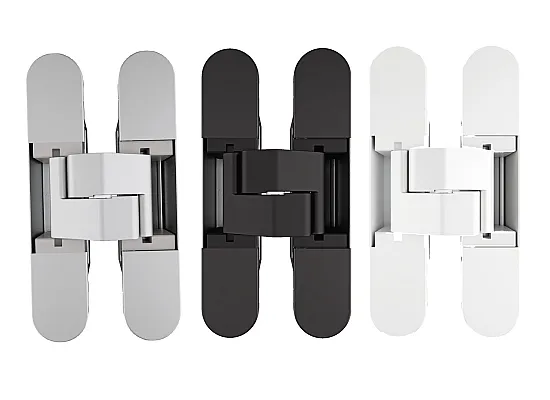

Available in our webshop in the colors Matt Chrome, White and Matt Black. Also available on request in Brass-colored, Antique Brass-colored and Bronze-colored.
