Absolute Evo FH

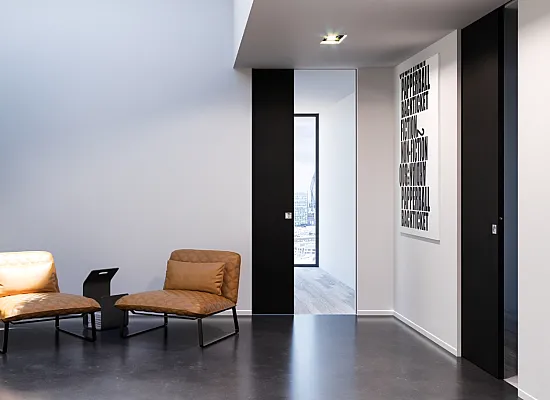

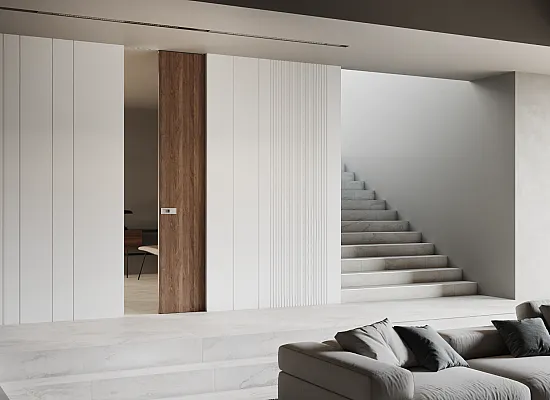

Sliding door system Absolute Evo FH (Full Height) by Ermetika® is a special version of the Absolute Evo system and there for suitable for a dropped ceiling, allowing the door to extend to the ceiling without a visible crossbar.

With this innovative pocket frame, plasterboard walls will have a smooth modern finish. The frame eliminates completely any use of extra doorpost and covering profile.

The pocket frame for 1 sliding door, is very solid thanks to the special metal structure with corrugated profile. This superior engineering together with the hanging kit with self-lubricating bearings, will give you many years of trouble free silent and silky smooth movement of the door panel.

NOTE:

• The pocket frame comes without sliding door panel

Extra technical information:

• Available for different dimensions finished wall thickness; 100 mm (single layer plasterboard), 107 mm (plaster, 125 mm (2 types for plasterboard: single layer OR for double layer) and 150 cm (double layer plasterboard or plaster)
• The hanging kit that is supplied with the pocket frame is suitable for a door panel with a weight up to 120 Kg.
• With this particular pocket frame, the actual dimension of the doorway will be reduced with approx. 1 cm
• It is recommended to use plasterboard with a thickness of 12,5 mm
• Door panel can be up to 4,2 cm thick
