- Stock: on request, ask delivery time
- Manufacturer: Ermetika
- Model: AED
Available Options
Sliding door system Absolute Evo Doppio by Ermetika is the dream of any interior architect or designer because of the clean, modern finishing.

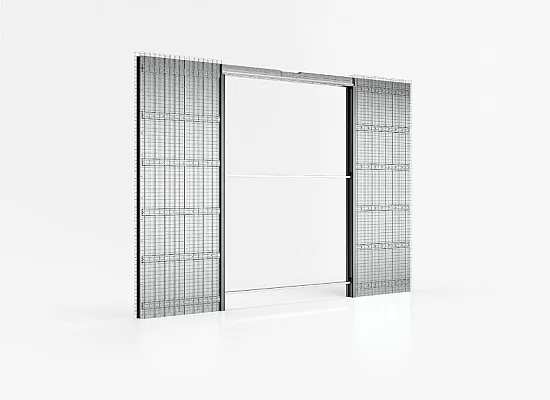

With this innovative pocket frame for 2 sliding door panels, plaster board walls will have a completely smooth finish. The frame eliminates completely any use of extra doorposts and covering profiles.
The pocket frame is very solid thanks to the special metal structure with corrugated profile. This superior engineering together with the hanging kit with self-lubricating bearings, will give you many years of trouble free silent and silky smooth movement of the door panels.
NOTE:
- The pocket frame comes without sliding door panels
Extra technical information:
- Available for different dimensions finished wall thinkness; 100 mm (single layer plasterboard), 125 mm (2 versions: for single layer OR for double layer plasterboard) and 150 cm (double layer plasterboard)
- The hanging kits that are supplied with the pocket frame, are suitable for door panels with a weight upto 120 Kg each.
- With this particular pocket frame the actual dimension of the doorway will be reduced with approx. 2 cm
- It is recommended to use plasterboard with a thickness of 12,5 mm
- Door panels can be upto 4,2 cm thick
Pocket systems | |
Maximum weight door | 120 kg |
Maximum thickness door | 42 mm |
Door opening width | 60 + 60 cm, 70 + 70 cm, 80+80 cm |
Door opening height | 200 cm, 210 cm, 220 cm, 230 cm, 240 cm, 250 cm, 260 cm, 270 cm |
Features |
File | Size | |
---|---|---|
Absolute Evo Doppio BIM (zip) | 15.33MB | Download |
