Absolute Energy Singolo

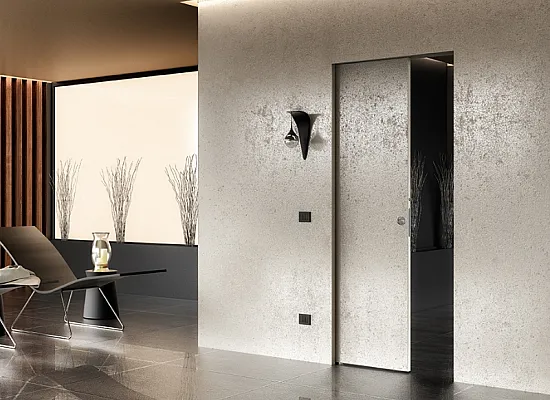

Sliding door system Absolute Energy Singolo by Ermetika has the looks of the Absolute Evo Singolo, so with a modern, smooth finishing without any use of an extra jamb and architrave (covering profile).

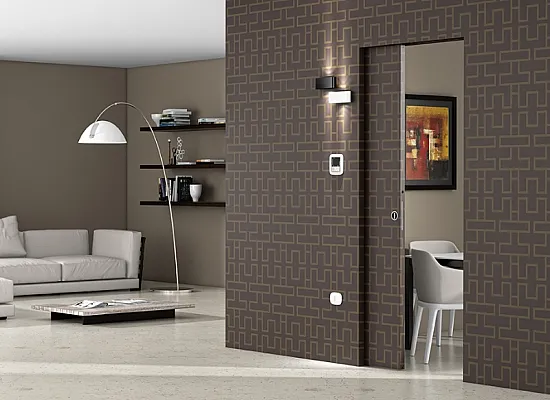

Beside the looks, this system has another big advantage; it can host switches, sockets, entry phone, thermostat and other electrical devices on both sides an on the whole height of the frame. The pocket frame is supplied with 4 sockets provided with 3 units each and with 2 pre mounted corrugated pipes ø 50 mm. On each side of the frame there is 1 earthing wire.

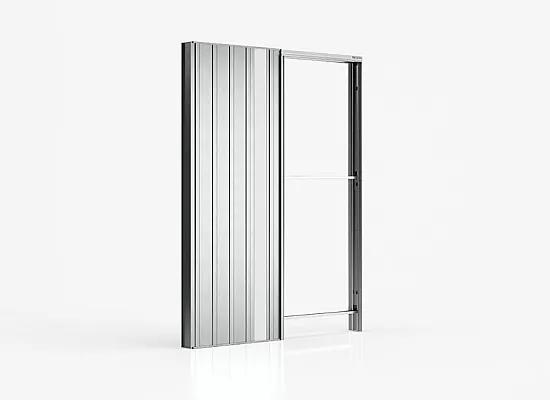

The pocket frame for 1 sliding door, is very solid thanks to the special metal structure with corrugated profile. once this system is insalled in a metal stud wall, finished with plasterboard, the superior engineering of the frame together with the hanging kit with self-lubricating bearings, will give you many years of trouble free silent and silky smooth movement of the door panel.

NOTE:

• The pocket frame comes without sliding door panel

Extra technical information:

• Available for wall thinkness 150 cm (PF150)
• The hanging kit that is supplied with the pocket frame is suitable for a door panel with a weight upto 120 Kg.
• With this particular pocket frame the actual dimension of the doorway will be reduced with approx. 1 cm
• It is recommended to use plasterboard with a thickness of 12,5 mm
• Door panel can be upto 4,2 cm thick
